Tela filtrante de PTFE
Created with Pixso.

Needle Punched Polyester PPS Nonwoven Filter Cloth Bag

Needle Punched Polyester PPS Nonwoven Filter Cloth Bag

Cuota De Producción: 100
Precio: 1.3
Información detallada
Modelo NO.:
PH00069
Tipo:
Filtro no tejido
Forma del agujero:
Aguja perforada
Método de fabricación:
Paño de fabricación
Tipo de papel:
Cualitativo
Temperatura de trabajo:
130
Ácido anti:
Bien
Alcalino anti:
Bien
ancho:
0 a 2,2 metros
Paquete de transporte:
Embalaje estándar de exportación
Especificación:
el 1m el x 1m el x 1m
Marca:
RUIQI
Origen:
Porcelana
Código HS:
5911900
Capacidad de producción:
5000PCS/semana
Resaltar:

Needle Punched PPS filter cloth bag

,

Polyester nonwoven filter fabric

,

PTFE filter cloth with warranty

Descripción del producto

Needle punched polyester PE, P84 , FMS , PTFE, ACRYLIC , NOMEX ,PP, PPS nonwoven filter cloth bag
Antistatic Polyester needle punched  Dust Filter Bag For Dust colloctor

RQ filter polyester needle punched felt is made from 1-2.5D PE filber Weaving reinforced substrates with High strength and low elongation Yarn,Through needle punched reinforcement and finishing-treatment process.The product has the special characteristics of high porosity, good permeability, acid resistance and moderate alkalinity of ordinary felt filter cloth.And very good wear resistance.One of the mostly used kinds of felt filter material.
Weight from 350gsm to 800g/m2 thickness from 1mm to 4mm .
 Finishing treatment : calendering , singeing,heating , PTFE coated. It has the characteristics of stable size, easy cleaning, long service life and so on.


Technical data sheet

material Polyester fiber   Polyester fiber
scrim polyester   polyester
weight 500g/m2   550g/m2
Thickness 1.70mm   2.00mm
Tensile strength   warp ≥11500N / 5cm   ≥1200N / 5cm
  weft ≥1500N / 5cm   ≥1600N / 5cm
Tensile elongation (%)   warp ≤30%   ≤30%
  weft ≤45%   ≤45%
Air permeabilithy(m3/m2·min) 14   12
130ºC Dry heat shrinkage warp < 1%   < 1%
130ºC Dry heat shrinkage weft < 1%   < 1%
Working temperature 130deg ºC   130deg ºC
Peak temperature 150deg ºC   150deg ºC
Finishing treatment Heating,singeing , calendering   Heating,singeing , calendering


Application : Mainly used in furniture, ceramics, powder coatings, batteries, cement, metallurgy, chemical, building materials, smelting, power generation, machinery, mines, petroleum, medicine, dyes, food,Grain processing and other manufacturers dust collect .

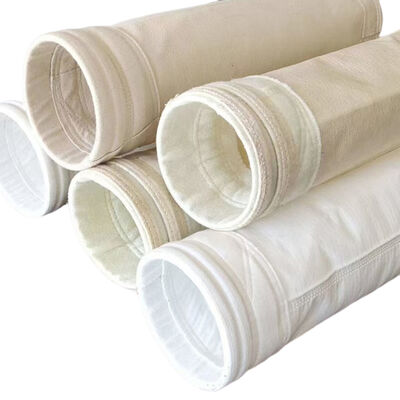

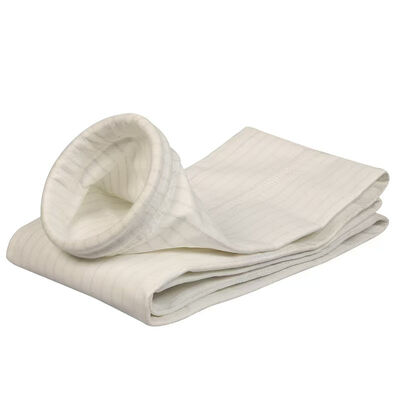

Needle Punched Polyester PPS Nonwoven Filter Cloth Bag 0Needle Punched Polyester PPS Nonwoven Filter Cloth Bag 1

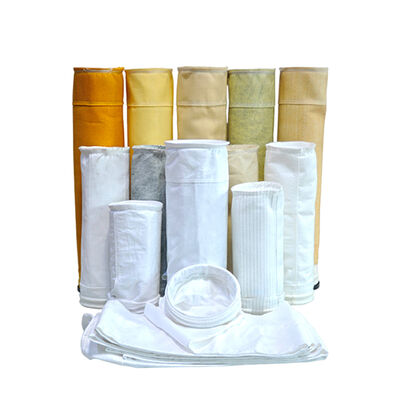

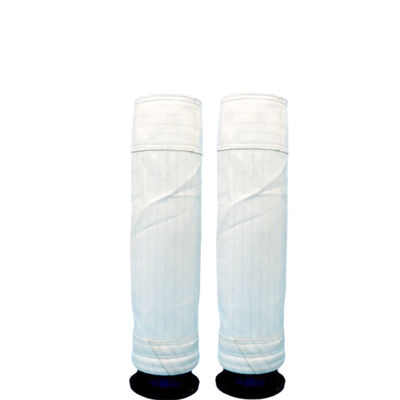

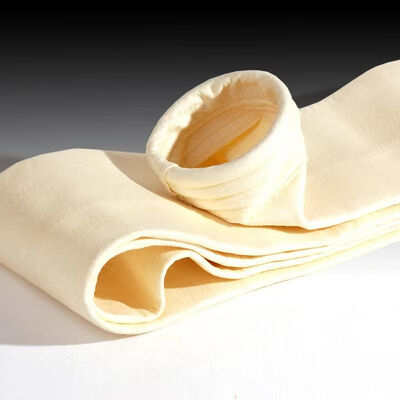

Needle Punched Polyester PPS Nonwoven Filter Cloth Bag 2Needle Punched Polyester PPS Nonwoven Filter Cloth Bag 3Needle Punched Polyester PPS Nonwoven Filter Cloth Bag 4

Riqi ( Hangzhou ) Filter Technology Co., Ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.

Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.

The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer's praise.
